2942.90 Side-Milling-cutter Blade Body

REFERENCE		ST-B	B	Z	D	d	Ae	Rev.
2942.90.0801.2		1.6	1.2	4	80	16	22	1000
2942.90.0801.8		2.2	1.8	4	80	16	22	1000
2942.90.0802.4		3.0	2.4	4	80	16	22	1000
2942.90.0803.0		4.0	3.0	4	80	16	22	1000
2942.90.0804.4		5.0+6.0	4.4	4	80	16	22	1000
2942.90.1001.2		1.6	1.2	8	100	22	28	800
2942.90.1001.8		2.2	1.8	8	100	22	28	800
2942.90.1002.4		3.0	2.4	8	100	22	28	800
2942.90.1003.0		4.0	3.0	8	100	22	28	800
2942.90.1004.4		5.0+6.0	4.4	8	100	22	28	800
2942.90.1251.2		1.6	1.2	10	125	22	40	650
2942.90.1251.8		2.2	1.8	10	125	22	40	650
2942.90.1252.4		3.0	2.4	10	125	22	40	650
2942.90.125.3.0		4.0	3.0	10	125	22	40	650
2942.90.125.4.4		5.0+6.0	4.4	10	125	22	40	650
2942.90.1602.4		3.0	2.4	15	160	32	49	500
2942.90.1603.0		4.0	3.0	15	160	32	49	500
2942.90.1604.4		5.0+6.0	4.4	15	160	32	49	500
2942.90.2002.4		3.0	2.4	20	200	40	63	400
2942.90.2003.0		4.0	3.0	20	200	40	63	400
2942.90.2004.4		5.0+6.0	4.4	20	200	40	63	400
2942.90.2502.4		3.0	2.4	24	250	40	88	300
2942.90.2503.0		4.0	3.0	24	250	40	88	300
2942.90.2504.4		5.0+6.0	4.4	24	250	40	88	300

REFERENCE INSERT	s	r
MRCF 1.6	1,6	0,15
MRCF 2.2	2,2	0,20
MRC..3.0	3,0	0,20
MRC..4.0	4,0	0,20
MRC..5.0	5,0	0,30
MRC..6.0	6,0	0,30

MRCF	MRCR	Click for more information

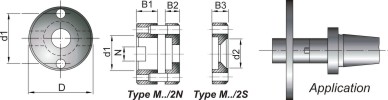

MN Drive-rings (set) with longitudinal groove

REFERENCE		D	Dc11	A	B	N	For side milling Ø
MN 16/2		32	16	25	25	4	80
MN 22/2		40	22	32	25	6	100/125
MN 32/2		58	32	46	25	8	160
MN 40/2		70	40	56	25	10	200/250

M N/S Drive-rings (set) with cross groove

REFERENCE		D	Dc11	A	B				N	For side milling Ø
M 16/2 N		32	16	10	25	13,5	10	-	8,4	80
M 22/2 N		40	22	12	32	14,5	10	-	10,4	100/125
M 32/2 N		58	32	18	46	17,5	15	-	14,4	160
M 40/2 N		70	40	22	56	19,5	17	-	16,4	200/250
M 16/2 S		32	16	10	25	13,5	-	10	8,4	80
M 22/2 S		40	22	12	32	14,5	-	10	10,4	100/125
M 32/2 S		58	32	18	46	17,5	-	15	14,4	160
M 40/2 S		70	40	22	56	19,5	-	17	16,4	200/250
