Modelo
|
D1(mm)
|
L (mm)
|
D2 (mm)
|
|

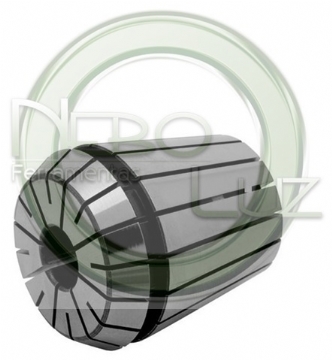

ER-8
|
8,5
|
13,5
|
1,0 – 1,5 – 2,0 – 2,5 – 3,0 – 3,5 – 4,0 – 4,5 – 5,0
|
|
ER-11
|
11,5
|
18
|
1,0 – 2,0 – 3,0 – 4,0 – 5,0 – 6,0 – 7,0
|
|
ER-16
|
17
|
2
|
1,0 – 2,0 – 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 – 9,0 – 10,0
|
|
ER-20
|
21
|
31
|
2,0 – 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 – 9,0 – 10,0 – 11,0 – 12,0 – 13,0
|
|
ER-25
|
26
|
35
|
2,0 – 3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 – 9,0 – 10,0 – 11,0 – 12,0 – 13,0 – 14,0 – 15,0 – 16,0
|
|
ER-32
|
33
|
40
|
3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 – 9,0 – 10,0 – 11,0 – 12,0 – 13,0 – 14,0 – 15,0 – 16,0 – 17,0 –18,0 – 19,0 – 20,0
|
|
ER-40
|
41
|
46
|
4,0 – 5,0 – 6,0 – 7,0 – 8,0 – 9,0 – 10,0 – 11,0 – 12,0 – 13,0 – 14,0 – 15,0 – 16,0 – 17,0 – 18,0– 19,0 – 20,0 – 21,0 – 22,0 – 23,0 – 24,0 – 25,0 – 26,0
|
|
ER-50
|
52
|
60
|
12,0 – 14,0 – 16,0 – 18,0 – 20,0 – 22,0 – 24,0 – 26,0 – 28,0 – 30,0 – 32,0 – 34,0
|
|
|
|
|

|
|

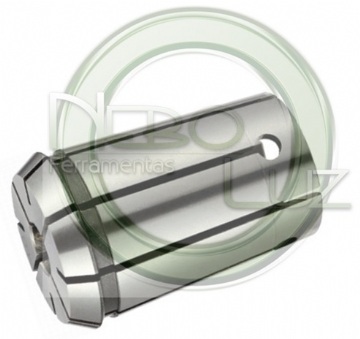

OZ-25
|
35,05
|
52
|
3,0 – 4,0 – 5,0 – 6,0 – 7,0 – 8,0 – 9,0 – 10,0 – 11,0 – 12,0 – 13,0 – 14,0 – 15,0 – 16,0 – 17,0 –18,0 – 19,0 – 20,0 – 21,0 – 22,0 – 23,0 – 24,0 – 25,0
1/8” – 3/16” – 1/4" – 5/16” – 3/8” – 7/16” – 1/2" – 9/16” – 5/8” – 11/16” – 3/4" – 13/16” – 7/8” –15/16” – 1”
|
|
OZ-32
|
44
|
60
|
6,0 – 7,0 – 8,0 – 9,0 – 10,0 – 11,0 – 12,0 – 13,0 – 14,0 – 15,0 – 16,0 – 17,0 – 18,0 – 19,0 –20,0 – 21,0 – 22,0 – 23,0 – 24,0 – 25,0 – 26,0 – 27,0 – 28,0 – 29,0 – 30,0 – 31,0 – 32,0
1/4" – 5/16” – 3/8” – 7/16” – 1/2" – 9/16” – 5/8” – 11/16” – 3/4" – 13/16” – 7/8” – 15/16” – 1” –1.1/8” – 1.1/4”
|
|
|
|
|
